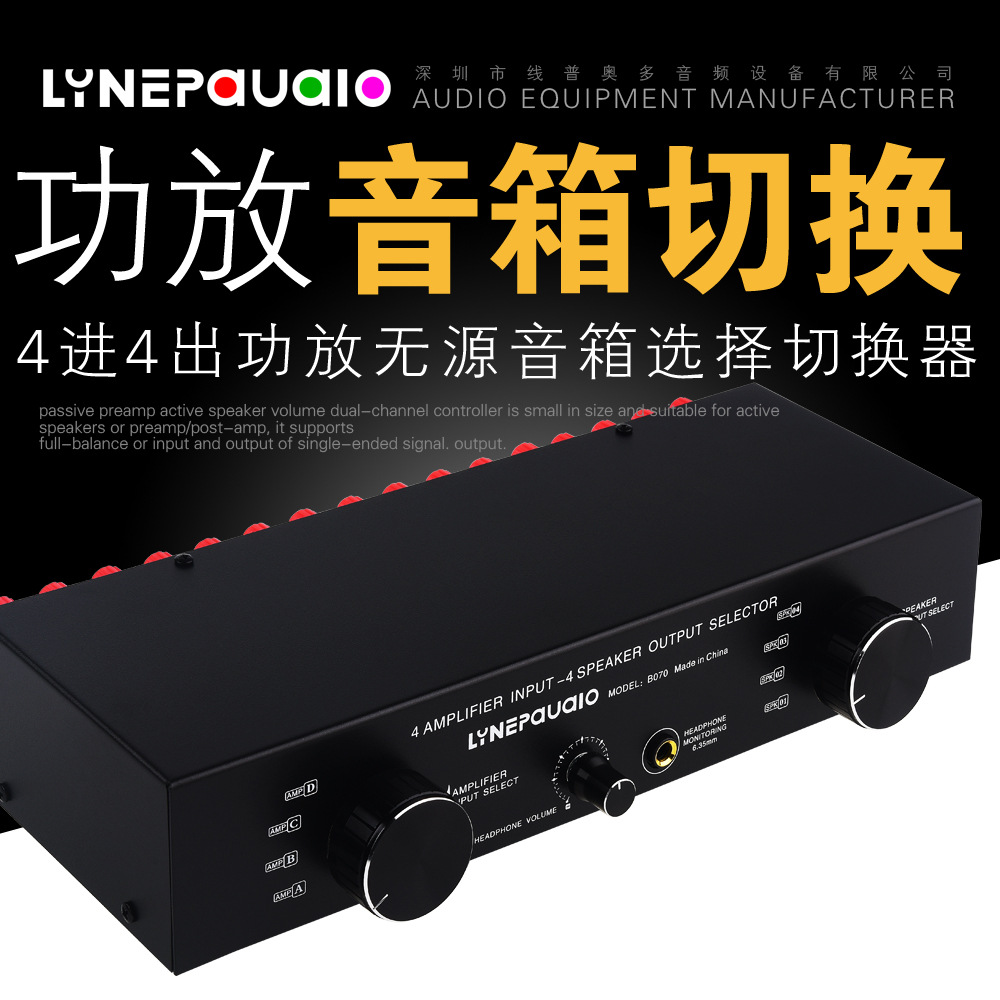

4 In And 4 Out Passive Amplifier Speaker Selection Switcher Audio...







产品标题：



B070--- 4进4出功放音箱选择切换器扬声器开关分配器比较器每通道300W音质无损耗







产品功能介绍：



你有4台功率放大器与4组扬声器需要怎样连接而困拢吗？



一个强大的功放音箱选择切换器可以解决以上问题，

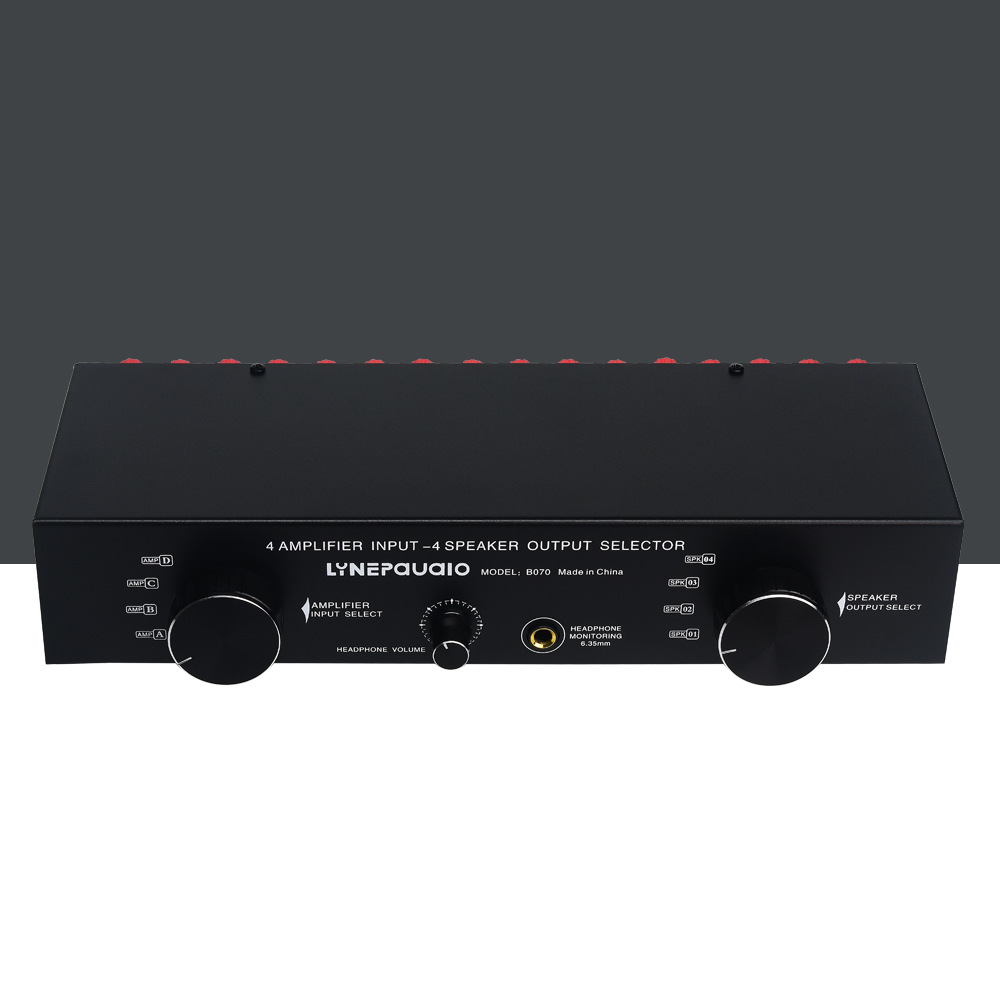

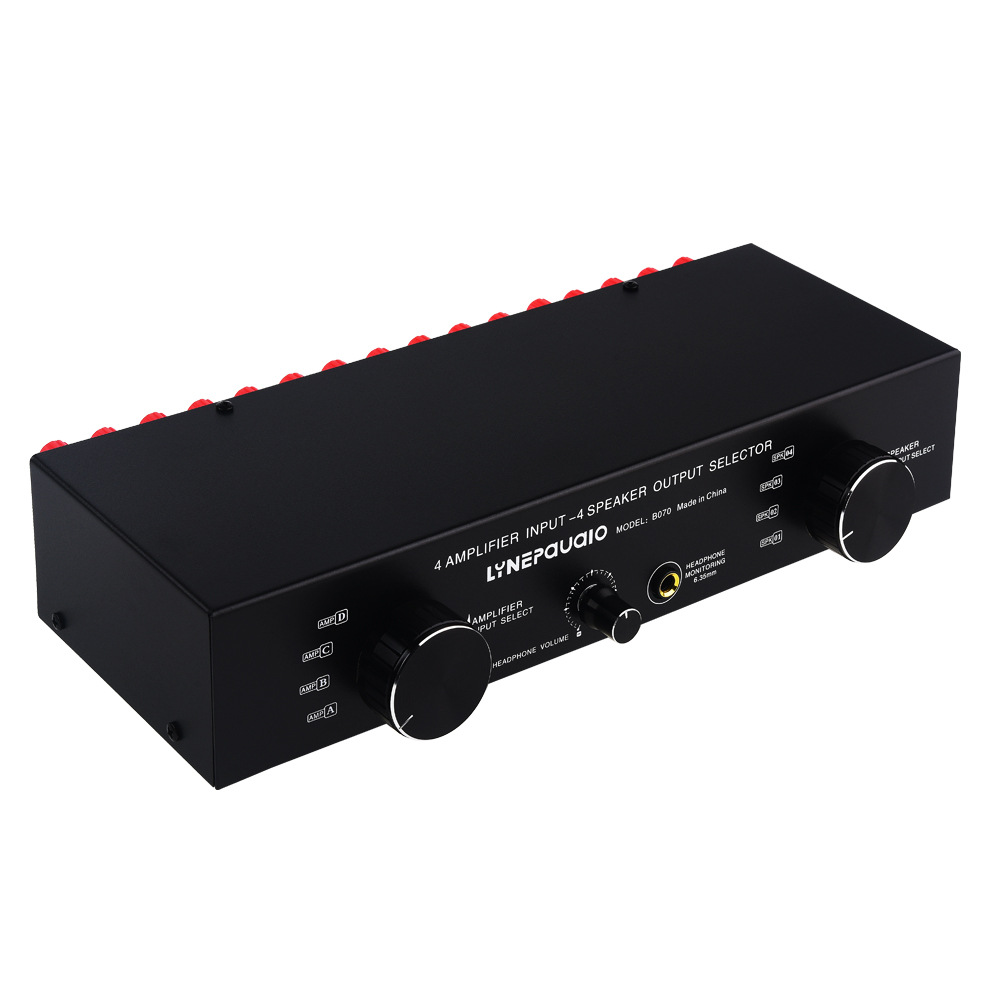

1、4台功率放大器档位开关旋转式选择切换输入，4组立体声扬声器档位开关旋转式选切换输出



2、可以使用香蕉头接口或可接受高达12 AWG扬声器线。与所有类型的放大器和扬声器完全兼容。



3、耳机6.35mm接口提供立体声耳机输出,用于个人聆听信号监控，耳机输出独立音量调节。



4、支持4至16欧姆阻抗的立体声扬声器，每个通道支持功率最高达300W



5、输入和输出手动选择切换，直插直用，切换信号稳定，通道之间不会产生另何干拢或噪声



6、紧凑的设计坚固的金属外壳，安装简单，产品无需外部电源



7、安装简单：输入输出即插即用方便安装，即可享受不一样的音频体验







产品参数：





材质：金属铁外壳



颜色：黑色



兼容所有类型的功率放大器和扬声器。



输入/输出通过端子口接受重型扬声器线或扬声器引脚线。



将功率放大器接在放大器A-B-C-D位置。



将扬声器分别接在扬声器1-2-3-4位置。



打开你的功率放大器立体声设备，产品无需外部电源。

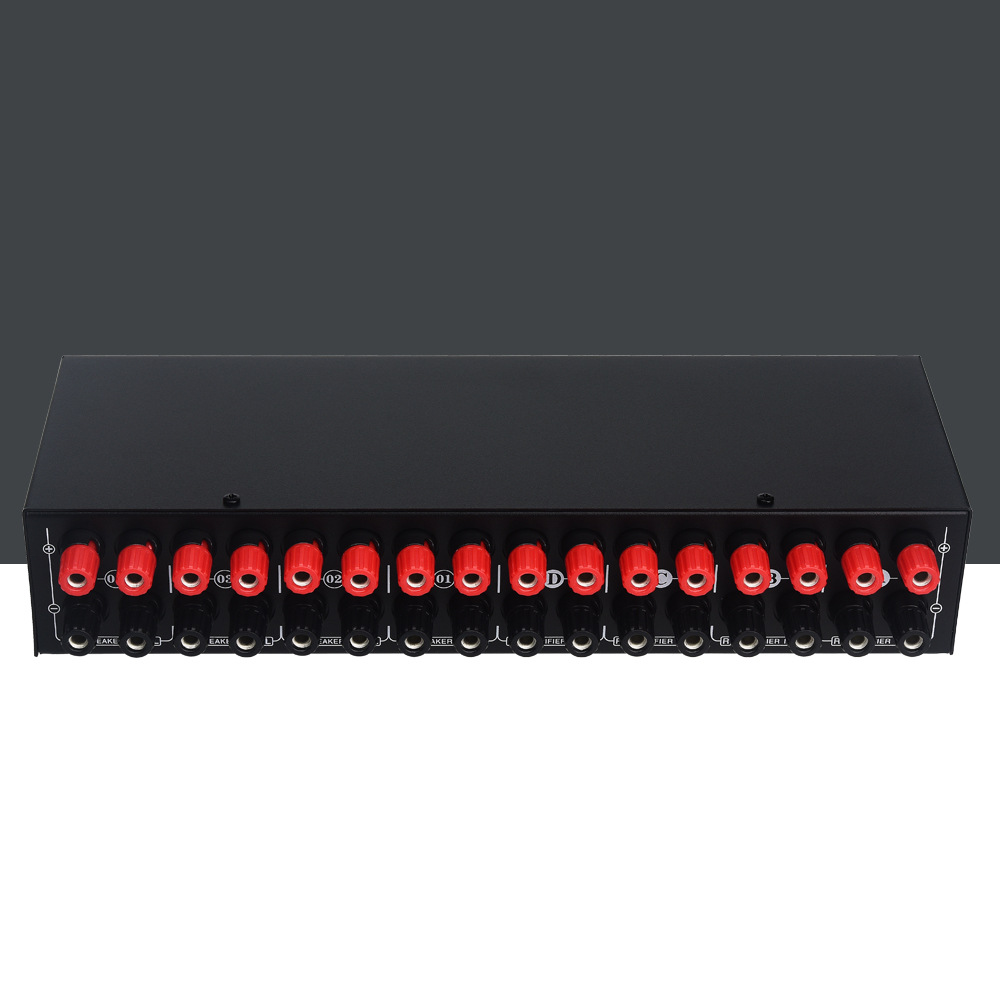

输入/输出：4组输入/4组输出(香蕉插头)



金属材料，精钢外壳，紧凑的尺寸适合任何系统。



通道功率：每个通道支持功率最高达300W 。



单品净重：1.18 kg



含包装后重量：1.39 kg



产品尺寸：长320 mm X 宽110 mm X 高62 mm



包装尺寸：长347 mm X 宽190 mm X 高73 mm







发货清单：



1 X 4进4出功放音箱选择切换器扬声器开关分配器











产品标题：



4 Input 4 Ooutput Power Amplifier Speaker Selector Switcher Speaker Switch Dispenser Comparator 300W Sound Quality Per Channel No Loss











功能介绍：



Product features:



Do you Have 4 Power Amplifiers and 4 sets of Speakers that need to be connected to get stuck?



A Powerful Power Amplifier selector Switcher can solve the above problems,



1、4 power amplifier gear switch rotary selection switching input, 4 groups of stereo speaker gear switch rotary selection switching output



2、Can use banana head interface or can accept up to 12 AWG speaker cable. Fully compatible with all types of amplifiers and speakers.



3、Headset 6.35mm interface provides stereo headset output, for personal listening signal monitoring, headset output independent volume adjustment.



4、Support 4 to 16 ohms impedance stereo speakers, each channel support power up to 300W



5、Input and output manual selection switch, direct insertion and direct use, switching signal is stable, there is no other interference or noise between channels



6、Compact design solid metal shell, easy installation, the product does not need external power supply



7、Simple installation: input and output plug and play easy installation, you can enjoy a different audio experience











产品参数：

Product Parameters:







Material: Metal iron shell



Color: Black



Compatible with all types of power amplifiers and speakers.



Input/output accepts heavy speaker wire or speaker pin wire through the terminal port.



Connect the power amplifier to the amplifier A-B-C-D position.



Connect speakers to speaker 1-2-3-4.



Turn on your power amplifier stereo device and the product requires no external power supply.



Input/output: 4 sets of input /4 sets of output (banana plug).



Metal material, steel casing, compact size to fit any system.



Channel power: Each channel supports power up to 300W.



Net weight: 1.18kg.



Weight including package: 1.39kg.



Product size: Length 320 mm X width 110 mm X height 62 mm.



Package size: L 347 mm X W 190 mm X H 73 mm.





发货清单：



Shipping list:



1 X 4 In 4 out Power Amplifier Speaker Select Switcher Speaker Switch Dispenser
