Ne5532 Music Audio Headset Audio Mobile Phone Sound Volume Adjustment...
In Stock
₵103.85 - ₵126.92
Wholesale MOQ: 2+
Product Specifications
Product Details & Specifications
- Types of audio-visual accessories: Audio Accessories
- Brand: Rhythm imagination
- Model: AU-10X
- Item number: AU-10X
- Product Specifications: AU-10X host

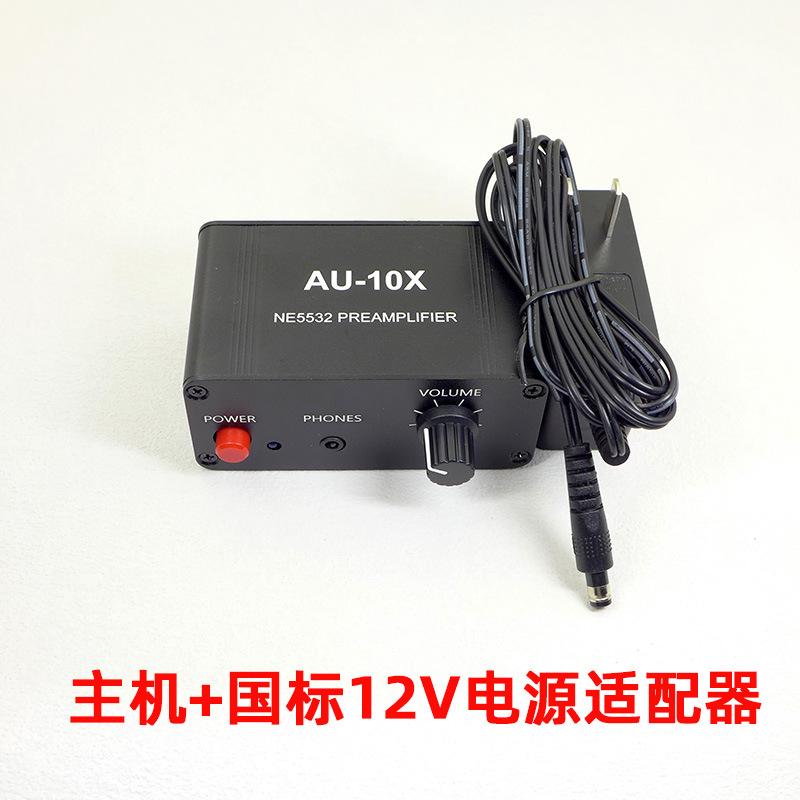

- Product Specifications: AU-10X + GB power supply

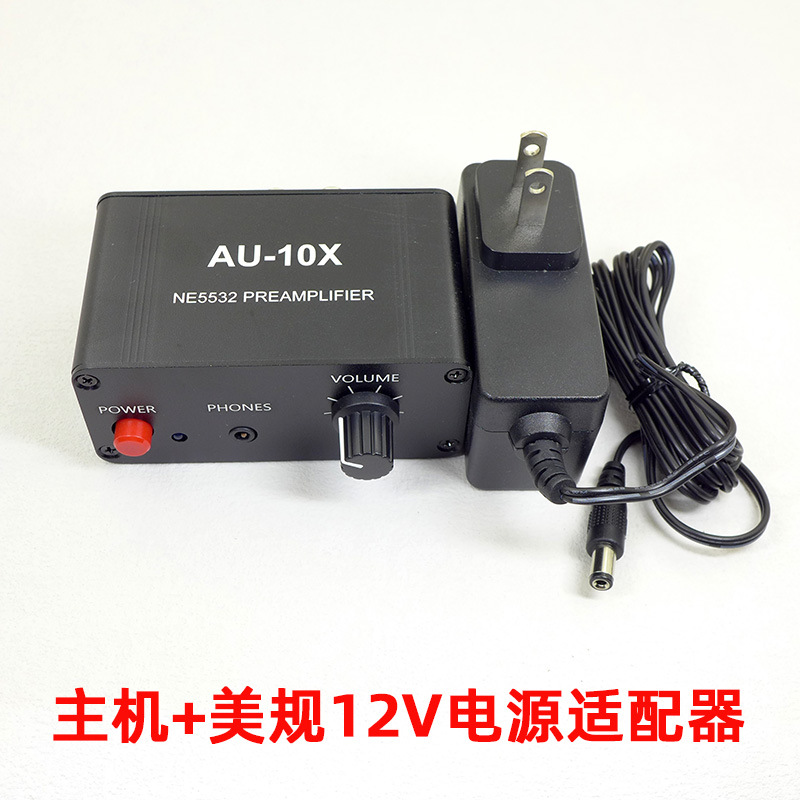

- Product Specifications: AU-10X + US power supply
- Product Specifications: AU-10X + European power supply
- Product Category: Accessories
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\

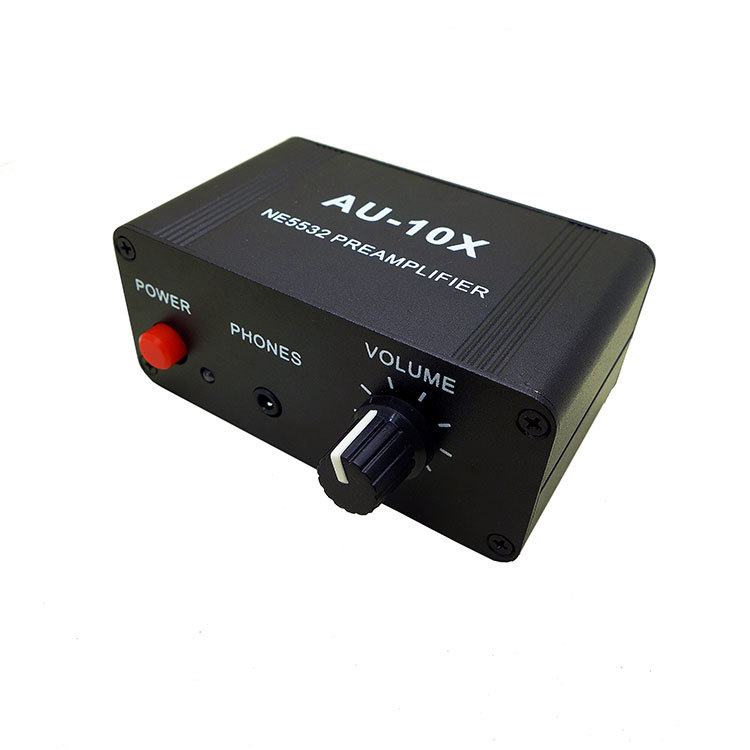

Stereo Audio Preamplifier
The amplification circuit adopts the classic NE5532 operational amplifier, which can drive headphones, power amplifier Active Speaker；
The audio circuit has relatively high requirements for the power supply. Please use a low-ripple power supply. Poor power supply is likely to cause hum. The audio connecting wires should be shielded wires.
Frequency response: 20Hz-20KHz
Power Supply: DC 9V-19V;
Supply Current: 8 mA;
Power Consumption: 0.9 W；
Amplification Gain: 20 dB；
Input impedance: 10K
Output impedance: 600Ω
Input and Output Interfaces: 3.5 mm, RCA；
The 3.5 mm interface and the RCA interface are designed to adapt to different situations. They cannot be used simultaneously. Just choose one of them.
\
\
\
\
\
\
\
\
\
\
\
\
